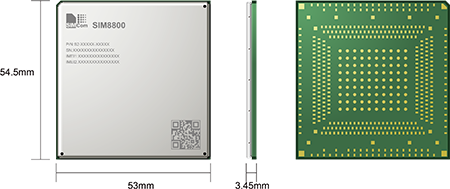

The SIM8800 Series module is Automotive Grade Multi-Band 5G NR and C-V2X module which supports R15 5G NSA/SA up to 2.4Gbps data transfer.
It has strong extension capability with abundant interfaces including PCIe, USB3.1, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.
SIM8800 Series module adopts LGA form factor and the AT commands are compatible with SIM8200 series modules. This also minimizes the investments of customers and enables a short time-to-market.
It is designed for automotive applications with IATF 16949 requirement and provide the unique combination of performance, security and flexibility for automotive applications.
- LGA form factor with abundant interfaces
- Compliant with automotive quality management system IATF 16949: 2016
- Excellent EMC protection ensures great robustness even in harsh environments
- Compact LGA form factor ideal for integration in automotive devices
- 5G + C-V2X radio
- Multi-constellation GNSS receiver
- With abundant interfaces and application capability, provides much flexibility and ease of integration for customer's applications
| Product | SIM8800CE | SIM8800E | ||
| Form factor | LGA, 524 PIN | LGA, 524 PIN | ||
| Dimensions(mm) | 54.5*53.0*3.45 | 54.5*53.0*3.45 | ||
| Frequency Bands | 5G NR | n1/n3/n28/n41/n78/n79 | n1/n3/n8/n20/n28/n41/n78/n79 | |
| LTE-FDD | B1/B3/B5/B7/B8 | B1/B3/B5/B7/B8/B20/B28/B32 | ||
| LTE-TDD | B34/B38/B39/B40/B41 | B38/B40/B41/B42 | ||
| WCDMA | B1/B8 B1/B3/B5/B6/B8 |
|
||
| GSM | 900/1800MHz | 900/1800 MHz | ||
| GNSS | ● | ● | ||
| Temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | ||
| Electrical Features | ||||
| Supply Voltage(V) | 3.3V ~ 4.3V | 3.3V ~ 4.3V | ||
| Power Consumption(mA) | 5G NR | TBD | TBD | |
| LTE-FDD | TBD | TBD | ||
| LTE TDD | TBD | TBD | ||
| WCDMA, DRX=9 | TBD | TBD | ||
| GSM,BS_PA_MFRMS=2 | TBD | TBD | ||
| Data Transfer | ||||
| 5G NR(Mbps) | 2400(DL)/900(UL) | 2400(DL)/900(UL) | ||
| LTE(Mbps) | 1000 (DL)/200(UL) | 1000 (DL)/200(UL) | ||
| HSPA+(Mbps) | 42(DL)/5.76(UL) | 42(DL)/5.76(UL) | ||
| WCDMA(Kbps) | 384(DL)/384(UL) | 384(DL)/384(UL) | ||
| GPRS/EDGE(Kbps) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | ||
| Software Features | ||||
| Protocol | TCP/ UDP/ PPP/ PING/ FTP(S)/ HTTP(S)/ SMTP/ SSL/ TLS/ MMS/ NTP/ FILE/ QMI | TCP/ UDP/ PPP/ PING/ FTP(S)/ HTTP(S)/ SMTP/ SSL/ TLS/ MMS/ NTP/ FILE/ QMI | ||
| eCall | ● | ● | ||
| TLS | ● | ● | ||
| File System | ● | ● | ||
| Audio Record/Play | ● | ● | ||
| TTS | ● | ● | ||
| DTMF | ● | ● | ||
| LBS | ● | ● | ||
| FOTA | ● | ● | ||
| Jamming Detection | ● | ● | ||
| Security | Trust Zone/ Secure Boot/ SE-Linux | Trust Zone/ Secure Boot/ SE-Linux | ||
| Android RIL | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/7.0/8.0/9.0 | ||
| USB Driver | Windows 7/8/8.1/10, Linux 2.6~5.0, Android 4.x/5.x/6.x/7.x/8.x/9.x | Windows 7/8/8.1/10, Linux 2.6~5.0, Android 4.x/5.x/6.x/7.x/8.x/9.x | ||
| WWAN (RNDIS)/ECM | ● | ● | ||
| MBIM | Win8/Win10 | Win8/Win10 | ||
| NDIS | Linux/Windows 7/8/10 | Linux/Windows 7/8/10 | ||
| Open Linux | ● | ● | ||
| Firmware Upgrade | USB/FOTA | USB/FOTA | ||
| Wi-Fi/BT | 2.4G/5G/BLE5.2 | 2.4G/5G/BLE5.2 | ||
| Interfaces | ||||
| SIM Card | 1.8V/3.0V | 1.8V/3.0V | ||
| UART | 3*UART | 3*UART | ||
| USB | 1* USB 3.1/2.0 | 1* USB 3.1/2.0 | ||
| PCIe | ● | ● | ||
| PCM | ● | ● | ||
| I2S | ● | ● | ||
| ADC | *2 | *2 | ||
| SDIO | SDIO3.0(200MHz Max) | SDIO3.0(200MHz Max) | ||
| SPI | ● | ● | ||
| I2C | ● | ● | ||
| SGMII | ● | ● | ||
| Diversity Receiver | ● | ● | ||
| Certification | ||||
| Regulatory | 3C/SRRC/NAL*/RoHS*/REACH* | CE-RED*/RoHS*/REACH* | ||
